OV-10 Bronco 30cc bellissima riproduzione Hangar 9

Aeromodelli

Product Details

For the giant scale warbird enthusiast and experienced balsa pilot, the new Hangar 9® OV-10 Bronco is our largest giant scale warbird to date. It features many scale details and the incredible flight performance Hangar 9 customers expect.

Key Features

Finely, detailed satin-finish printed covering includes panel lines, rivets, and weathering
Expertly constructed with laser-cut balsa and plywood
Designed to fit 30-35cc gas engines or equivalent electric power systems
Includes mounts for either gas or electric power options
5" Scale wheels included

nella confezione

(1) Hangar 9 OV-10 Bronco 30cc ARF

(1) Product Manual

necessita di :

(2) 30cc two/four stroke gas engine or equivalent power system

(1) Full range, 12+ channel transmitter and receiver

(2) Batteries for electronic ignition (for gas power option) and (1) for receiver

(1) Standard Digital HV High Torque Metal Gear Servo

(9) Standard Digital HV High Torque High Speed Servos

(2) Propellers

(1) Hangar 9 OV-10 Scale Retract Set

Introduction

The full-size OV-10 Bronco was one of the most versatile military aircraft and saw action as a light attack and observational platform. Faster than a helicopter yet slower with more maneuverability than a jet, the Bronco was the best of both worlds bringing a multitude of tactical advantages. In military operations, the Bronco excelled at anti-guerrilla operations, air support and utility missions. It saw action in the final years of the Vietnam War and flew combat missions in Operation Desert Storm.

As a rarely modeled warbird, the Hangar 9® OV-10 Bronco features incredible scale details and a unique flight experience as a twin-engine aircraft. Hangar 9 is proud to introduce this modern warbird in a complete ARF format for the giant scale RC pilot.

Features

Finely, detailed satin-finish printed covering includes panel lines, rivets, and weathering
Expertly constructed with laser-cut balsa and plywood
Fully painted fiberglass cowlings with scale details including weathering
Pre-painted plastic spinners
3-Piece plug-in wing with center section landing gear support for easy transportation and field assembly
Designed to fit 30-35cc gas engines or equivalent electric power systems
Large top hatch with two spring latch system
Cockpit details include (1) painted pilot figure, two seats and 3D instrument panel

Includes mounts for either gas or electric power options
Functional 4-panel flaps deploy using internal linkages
Other scale details include guns, sidewinder missiles, and centerline drop tank
Painted plastic front turret adds scale realism
Available Hangar 9 OV-10 Bronco electric retract set with shock-absorbing scale struts (sold separately)
Includes number decals for customization and spare sheets of covering for covering repairs
Complete hardware set included

Overview

For the giant-scale warbird enthusiast and experienced pilot, the new Hangar 9® OV-10 Bronco is our largest giant-scale warbird to date. It features many scale details and the incredible flight performance Hangar 9 customers expect. As a unique subject, the OV-10 Bronco features many scale details such as highly detailed satin-finish printed covering and ultra-scale accessories including pilot, cockpit details and sidewinder missiles. The fully painted fiberglass cowlings feature added weathering for scale realism. Featuring a 108-inch wingspan, this model represents giant scale flying, yet is practical enough to fly every day. The three-piece plug-in wing with center section landing gear support allows for easy transportation and field assembly. Designed to accept 30 – 35cc gasoline engines as well as electric power, the complete hardware kit is included and makes mounting the power system quick and easy. Like the full-size warbird, the scale undercarriage legs are sprung for shock absorption and made from high grade aluminum, taking most of the bounce out of tough terrain. Available separately, the required electric retract set with shock-absorbing scale struts provides additional scale realism. The Hangar 9 OV-10 30cc is a matchless model delivering the flight experience of a versatile twin-engine aircraft.

Specs

Airfoil Shape	Semi-symmetrical
Approximate Assembly Time	20+ hours
Approximate Flight Time	Approximately 6 minutes
Battery	Sold Separately
CG (Center of Gravity)	6.5" (165mm)
Charger	Sold Separately
Completion Level	Almost Ready-To-Fly
Engine Size	30cc gasoline engine required
Flaps	Yes
Flying Weight	2001-25000g
Power Type	Electric/Gas
Landing Gear	None (electric retracts require separate purchase)
Material	Wood
Minimum Required Radio	12 channel, full range
Minimum Speed Control	100A
Motor Size	120 - 180 required
Motor Type	Brushless
Product Length	113" (2870 mm)
Product Weight	40 - 42lbs (18.1 - 19.05kg)
Propeller Size	18" (457 mm)
Prop Range	17 - 20"
Radio	Sold Separately
Receiver	Sold Separately
Recommended Motor Battery	6-12s 5000-10000mAh
Retracts	Sold Separately
Scale	Giant
Servos	Sold Separately
Spinner Size	3.75" (95 mm)
Steering	Yes
Trim Scheme Colors	Printed covering
Wing Area	15.75 sq in (1.017sq dm)
Wing Loading	42.66 oz/sq ft (130.2 g/sq dm)
Wingspan	108" (2743 mm)

Distinctive Subject Matter

The Hangar 9 OV-10 Bronco is historically accurate and the most unique model in our line of giant scale warbirds. This giant-scale Hangar 9 replica is every bit the stunner its full-scale inspiration is.

Large 108" Wingspan

At an impressive 108" wingspan, the OV-10 Bronco is one of the largest warbirds ever manufactured for an incredible giant-scale experience with adventure-driven capability.

Lightweight Construction

Laser-cut, lightweight balsa and plywood construction is utilized to bring the OV-10 Bronco to life as a durable scale model that's expertly built to exacting standards.

Power It The Way You Want It

The OV-10 can be flown with many different size and power output electric systems. It is designed to accept popular 2-stroke and 4-stroke gasoline engines as well as high-end brushless electric motors and batteries for impressive power and flight duration. The huge center fuselage makes it possible to fit almost any battery combination. All hardware for the recommended power system options is included so assembly is easy and so you can get in the air faster.

Exquisite Scale Details

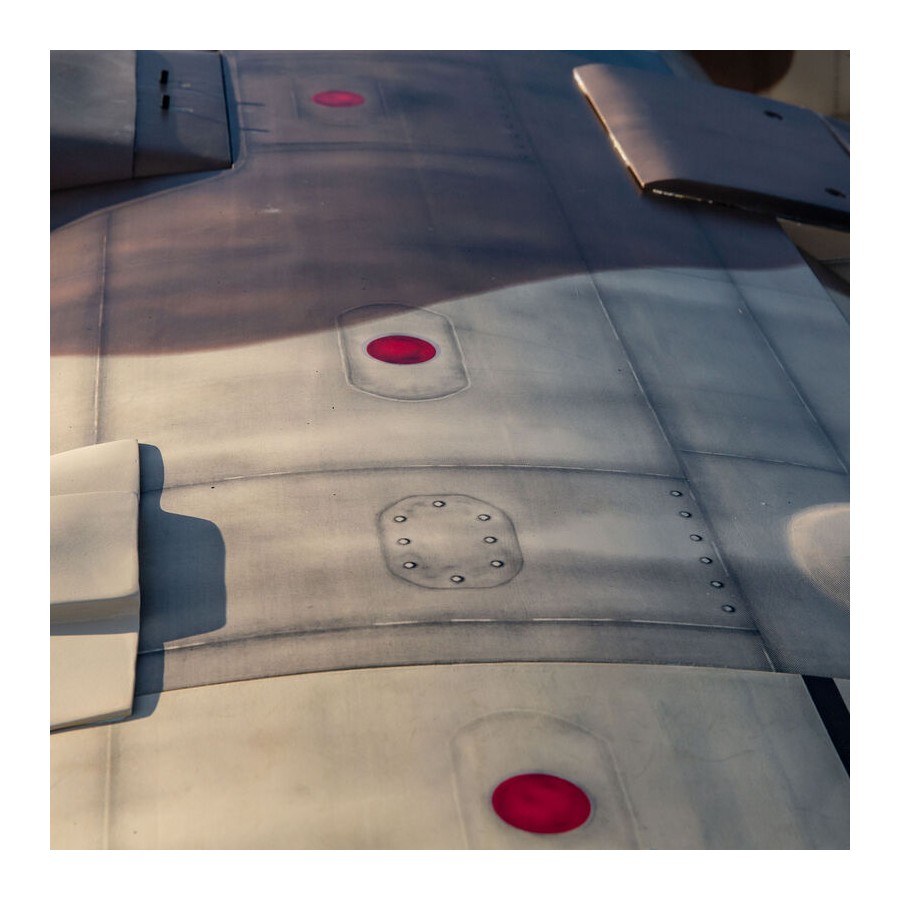

This OV-10 Bronco features impressive details including finely detailed satin-finish printed covering with panel lines, rivets, and weathering, a painted pilot figure, and 3D instrument panel. There are six ready to fit operational gear doors. Plus, removable cannons, scale sidewinder missiles with detachable wing pylons, and a center line external fuel tank with detachable mount.

Optional Hangar 9 Retracts

The recommended Hangar 9 electric retract system includes shock-absorbing struts, feature all-metal durability and are an easy installation that lets you take in-flight scale realism to a higher level.
